Description
NOTE: As of Composer Version 7.5.4, Deep Zoom is no longer available for selection in the Assets Panel. It can still be used in existing experiences, but Intuiface will no longer deliver updates or bug fixes for this asset.
NOTE: The Helix collection is only supported in Composer and Player for Windows. It cannot be used in Player on any other supported platform.
NOTE: Microsoft discontinued Silverlight 5 in October 2021, rendering the "Microsoft Deep Zoom Composer" unavailable.
You can still use images produced using the following settings in Deep Zoom Composer:
- Output type: Silverlight Deep Zoom
- Export Options: Export as a composition (single image)
When importing a Deep Zoom image into Composer, select the file dzc_output.xml. Composer will import the associated image files found in the dzc_output_files folder.
You can import the Deep Zoom file used in the above-animated gif.
Download it here
Important note concerning Deep Zoom images
To allow users to explore the Deep Zoom image, the Container style property must be set to Static or Pin.
Properties, Triggers & Actions
Properties
See our list of common properties for details about properties shared by all asset types.
Appearance
Deep Zoom image
- Initial view defines the level of zoom when the Deep Zoom image is first displayed
- Show curtain shadows
Behavior
Deep Zoom image

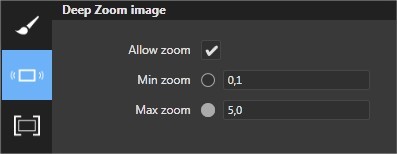

- Allow zoom lets users zoom the Deep Zoom image
- Min zoom defines the minimum zoom percentage for the Deep Zoom image
- Max zoom defines the maximum zoom percentage for the Deep Zoom image
Triggers
See Triggers Overview to get details of common triggers shared by all assets or collections

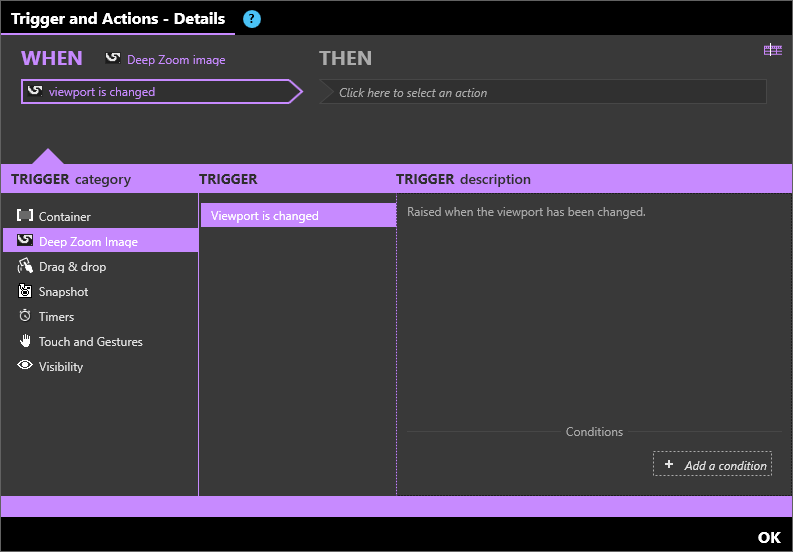

- Viewport is changed: Raised when the viewport has been changed. This trigger raises the following parameters:
- Height
- Width
- X
- Y
Actions
See Actions Overview to get details of common actions shared by all assets or collections

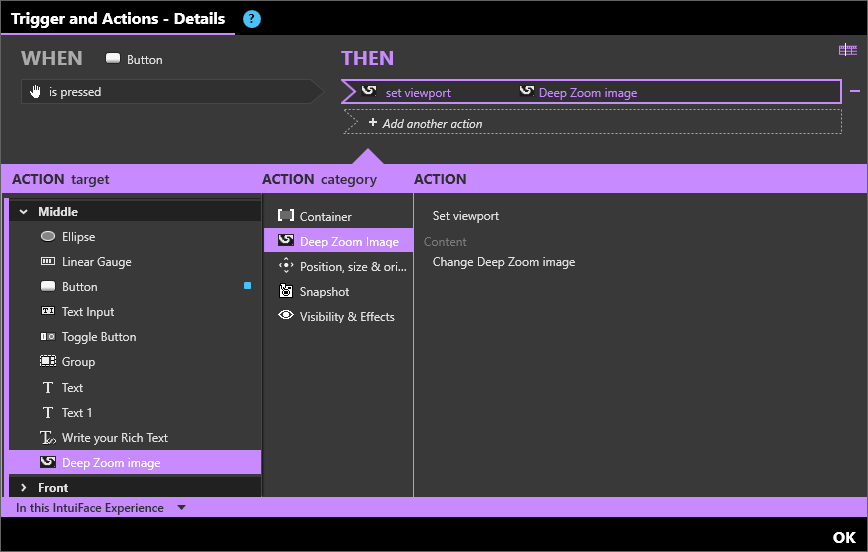

- Set viewport: Set viewport using the center coordinate and size.
- Top left point, x coordinate
- Top left point, y coordinate
- Width
- Height
- Change Deep Zoom Image: Replace current content with new content located at a specified URI.
- Deep Zoom Image: the new content to display.
