Intuiface Composer is the authoring tool for creating your interactive experiences. With Composer you can design all aspects of your experience without writing any line of code. Visit our Community to find user ideas, or take a look at our free Experience Samples for inspiration. For more details about using Composer, you can also subscribe to our free webinar sessions.
So now, let's get our tour started!

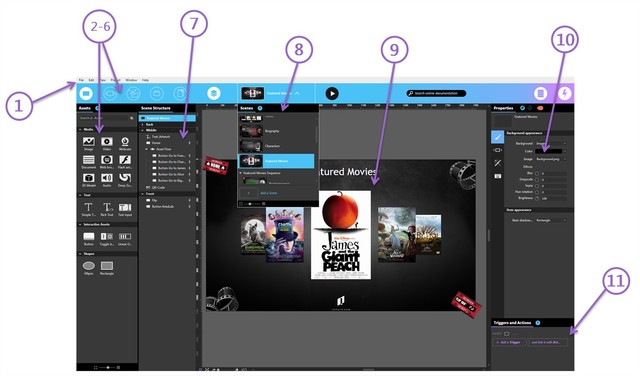

The Composer window
The Composer window has the following layout:
1. Menu bar
The menu bar contains different menus and options you can use when you create your experiences. It also enables you to publish your experiences as well as access the experience properties and help items.
2. Assets Panel
This panel allows you to add assets, to your interactive experience.
This panel can be accessed by clicking on the Assets Icon in the panel ribbon or by doing Alt + A on your keyboard.
Assets are listed in 4 categories:
- Media: Image, Video, Webcam, Document, Web Browser, 3D Model, Audio, Deep Zoom Image
- Text: Simple Text, Rich Text
- Interactive Assets: Button, Image Button, Tex Input, Toggle Button, Image toggle Button, Linear Gauge
- Shapes: Ellipse, Rectangle
Clicking any of these items will add them to the scene.
NOTE:
- Assets can also be added by right-clicking on the scene and selecting "Insert"
3. Collections Panel
This panel allows you to add collections, to your interactive experience.
This panel can be accessed by clicking on the Collections Icon in the panel ribbon or by clicking Alt + C on your keyboard.
Collections are listed in 3 categories:
- Layout Collections: Group, Pinboard
- Ordered Collections: Asset grid, Asset flow, Carousel, Helix, Flip chart, Slide show, Circular panel
- Dimensional Collections: Map, Timeline
- Collections can also be added by right-clicking on the scene and selecting "Insert"
4. Design Accelerators Panel
The Design Accelerators panel lists all prebuilt assets, collections, and scenes available for insertion in your experience. This panel can be accessed by clicking on the Design Accelerator Icon in the panel ribbon or by clicking Alt + D on your keyboard.
- Use the horizontal slider to control the display size of Design Accelerator options as you browse the content of each bundle
- Use the "Get More Accelerators" button to view a list of additional, downloadable Design Accelerator bundles.
- Use the gear-shaped Options button to expand/collapse the display of all downloaded bundles and to open the folder on your PC containing all downloaded bundles
5. Interface Assets Panel
Interface Assets (IA) enables Intuiface experiences to access external data, business logic, or devices.
This panel can be accessed by clicking on the Interface Assets Icon in the panel ribbon or by clicking Alt + I on your keyboard.
Here you can insert off-the-shelf IAs provided by Intuiface or have access to the Interface Assets present in your project.
6. Content Library
The Content Library lists all available graphic and auditory media.
This panel can be accessed by clicking on the Content Library Icon in the panel ribbon or by clicking Alt + L on your keyboard.
- Use the + button at the top of the Content Library panel to import new content for your interactive experience.
Graphic media can also be added to the scene or Content Library by dragging-and-dropping them from within File Explorer.
Use the Sort/Filter button to change the way content is displayed in the Content Library.
7. Scene Structure
The Scene Structure panel contains an inventory of all content in the currently selected scene - i.e. all layers, assets, and collections.
This panel can be accessed by clicking on the Scene Structure icon in the panel ribbon or by clicking Alt + S on your keyboard.
Selecting an item in the Scene Structure panel:
- selects the corresponding item in the scene
- displays details of the item in the Properties panel
Use the lock symbol to the left of each item to toggle whether the item can be selected and manipulated in the scene. This lock capability can be very helpful when you want to prevent others from modifying your experiences.
8. Scenes Panel
The Scenes panel shows how your experience is organized into scenes and how - if at all - those scenes are organized into sequences]. The order of scenes has no direct relationship to the order experienced by your users as your design determines navigation options.
Selecting a scene in the Scenes panel displays:
- the visual layout of the scene in the editing window
- inventory of content of the scene (layers, assets, collections) in the Scene Structure panel
- scene properties in the Properties panel
For guidance about how to add/remove/rename scenes and sequences, see this article.
9. Editing Window
The scene is where you create your experiences.
Add assets and collections to the scene to provide content for your users and allow them to interact with your interactive experience
Select another scene in the Scenes List to work on a different scene.
Click the PLAY button at the top of the blue strop or hit the <F5> key on your keyboard to run your interactive experience and see your experience as your users will see them. Click the Escape button on your keyboard to exit Play Mode.
10. Properties panel
The Properties panel shows the properties of the currently selected item in the Scene Structure panel or in the scene. This panel can be accessed by clicking on the Properties Icon in the panel ribbon or by clicking Alt + P on your keyboard.
You can modify some properties (position, size, orientation) by selecting items and manipulating them directly in the scene. You can
- drag the item to a new location
- adjust the item's square-shaped handles to change its dimensions
- rotate the round-shaped handle to change the rotation of the item
All assets and collections have additional properties you can display by clicking the Show All Properties button on the left-hand side of the Properties panel.
11. Triggers and Actions Panel
The Triggers and Actions panel captures all of the when/then relationships you use to create responsive experiences. This panel can be accessed by clicking on the Triggers and Actions Icon in the panel ribbon r or by clicking Alt + T on your keyboard.
Amongst the 100+ triggers in Intuiface you will find:
- When a button is pushed
- When a timer reaches 0
- When a number is entered
- When an image is selected
- When a video reaches a specific timestamp
The results of those triggers are actions and Intuiface has more than 100 of those as well. Examples include:
- Move an image across the screen
- Rewind a video
- Navigate to a new scene
- Zoom in on a specific map coordinate
- Send an email
See this article for more information about triggers and actions.
12. Backup and Auto-Save
Composer will auto-save your work!
Manipulating elements on the scene, adding assets, triggers, actions, or setting properties, in other words performing any changes to your experience, will trigger an auto-save mechanism.
Composer will auto-save your work every minute.
There is also a backup file that is created in case anything goes wrong with your experience.
