This article explains how the Ordered Collection Properties sample experience was built and how you can reuse it for your own needs. To access this sample, use the Marketplace tab of the Experiences panel in Composer or Player. You can also download it from this Marketplace page.
How it works
This experience was built to demonstrate the new ordered collection properties introduced in Composer 6.4.0.
- Autoscroll for all ordered collections (except for Ken Burns Effect and Item Picker)
- "Allow scroll" property for all ordered collections (except for Ken Burns Effect and Item Picker)
- Swap Collection and its various transition animation options
Each scene will demonstrate a usage of these new properties.

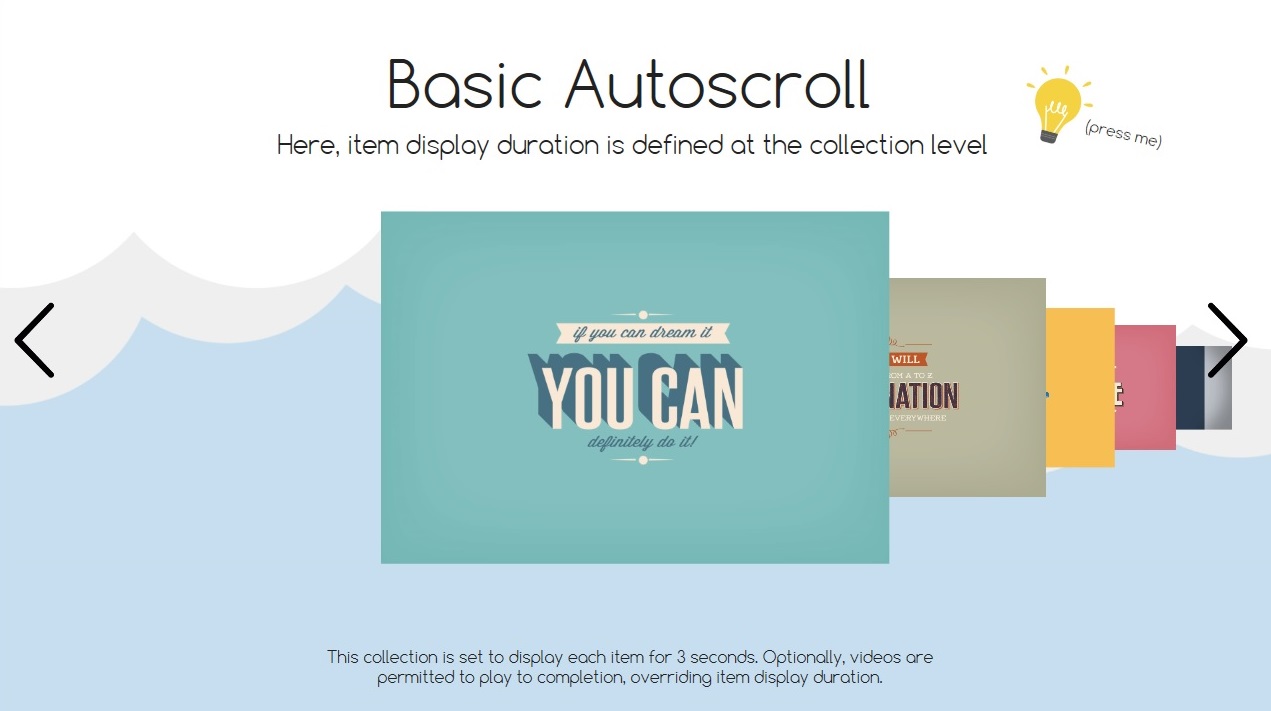

Basic Autoscroll scene
This scene uses the new autoscroll collection Behavior properties. In this example, the properties are set as follows:
- The collection will start auto scrolling five seconds after entering the scene.
- If a user touches the collection, it will wait five seconds after the touch to restart auto scrolling
- Each item will be in focus for three seconds, unless it is a video, in which case it will be visible during the entire video length.

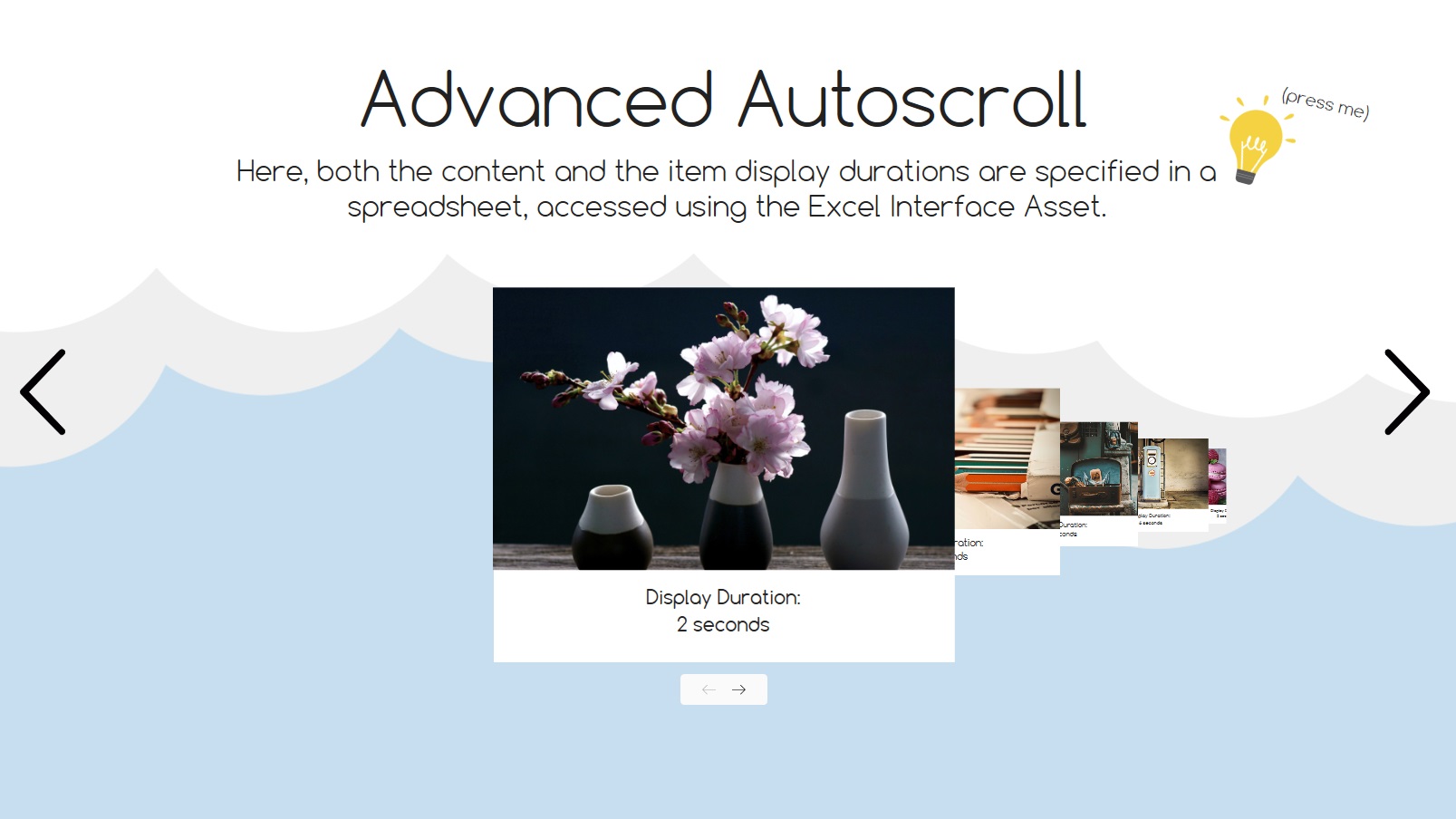

Advanced Autoscroll scene

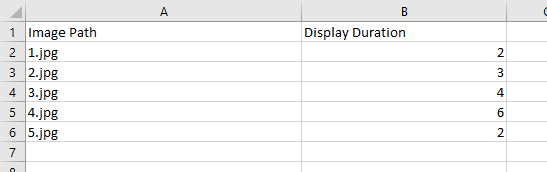

This scene uses an Excel file as a data feed, in which the display duration (in seconds) is specified. This approach enables the use of different display values for each image in the feed. Note this approach would work similarly when replacing the Excel data feed with any data feed from an online CMS.
The display duration is transferred to the data template using binding.

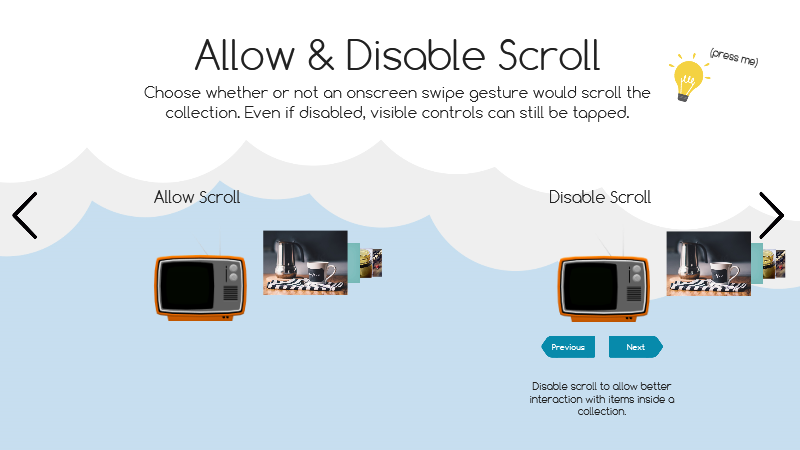

Allow & Disable Scroll scene
This scene illustrates how to use the Allow scroll collection behavior property.
This can be useful for a Quiz scenario, where the user should only be able to see the next question after selecting an answer.

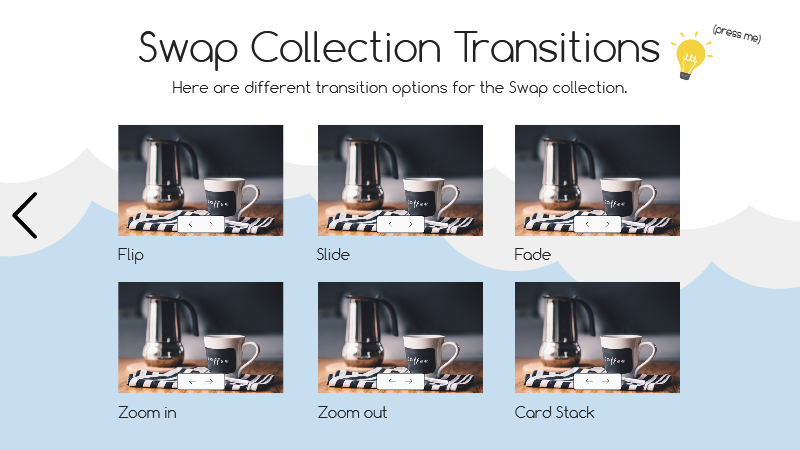

Swap Collection Transitions scene
This scene illustrates the updated Swap collection with its various transition animation options for moving from one item to the next.
