Overview

Data points transferred from Composer and Player to the Intuiface Analytics Data Hub can be forwarded directly to one or more Mixpanel projects.

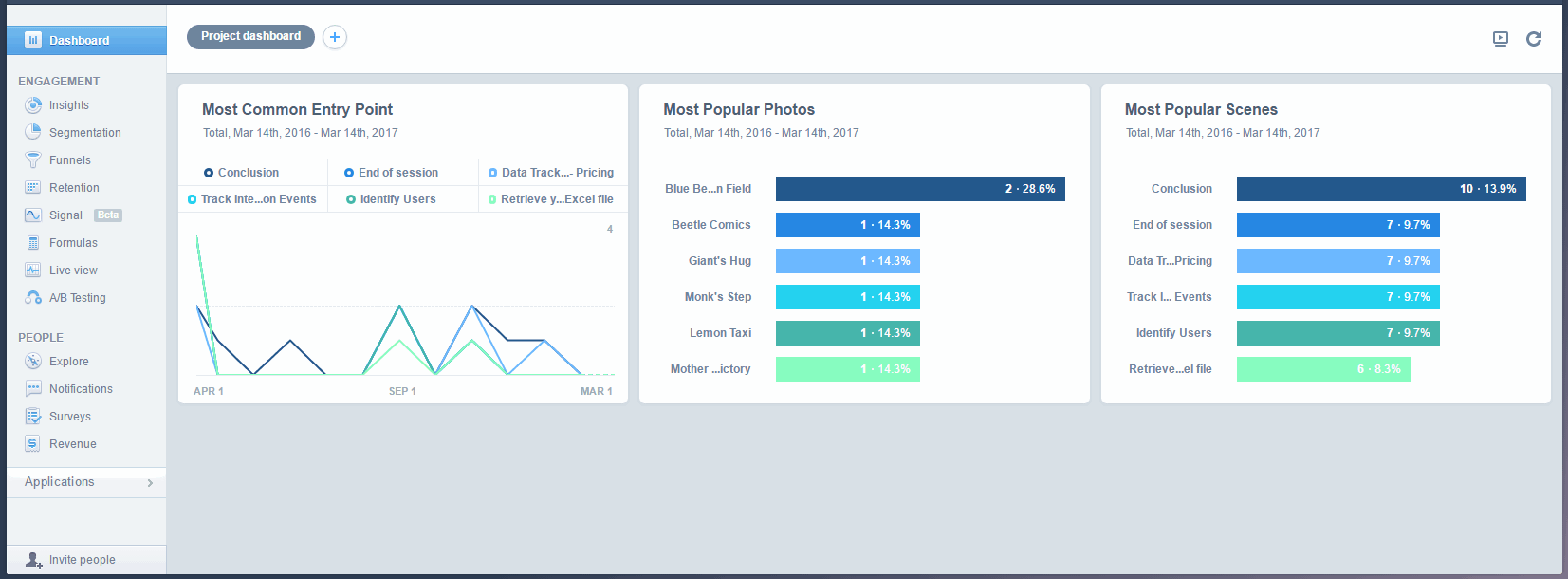

Mixpanel is third-party software specialized in analyzing data generated by multiple users of an application, website or - in Intuiface's case - interactive content. It can inspect your data for trends as well as produce live dashboards.

NOTE

• Intuiface has no formal relationship with Mixpanel and does not provide support for its offering.
• Up to two minutes can elapse between the Log Event action in a running Intuiface experience and the availability of the associated data for export to Mixpanel.

Configuring Intuiface to Forward Data Points to Mixpanel

1. Open the Analytics Data console.
2. Expand the Mixpanel Connector option.


3. Click the button "Add Connector for Mixpanel Project".

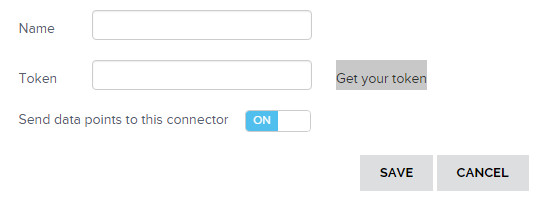

4. Enter any name you wish in the Name field (any will do it, but we recommend you use your Mixpanel project name) and, in the Token field, paste the project token for your Mixpanel project (see next section).

   • Clicking the "How to find a project token" link will take you to a Mixpanel page explaining where to find the project token.

5. Click the Save button.
6. Repeat Steps 3 through 5 for each additional Mixpanel project.

Finding the Token for a Mixpanel Project

To forward data to a Mixpanel project, Intuiface needs to know that project's token. [This section assumes you already have a Mixpanel account and one or more Mixpanel projects.]

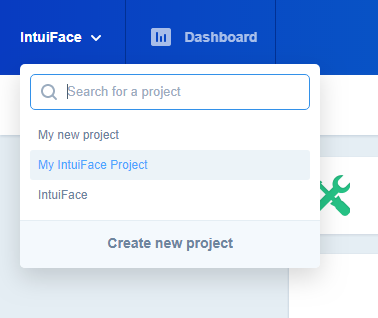

1. Log into Mixpanel and select the project into which you would like Intuiface data points to be transferred.

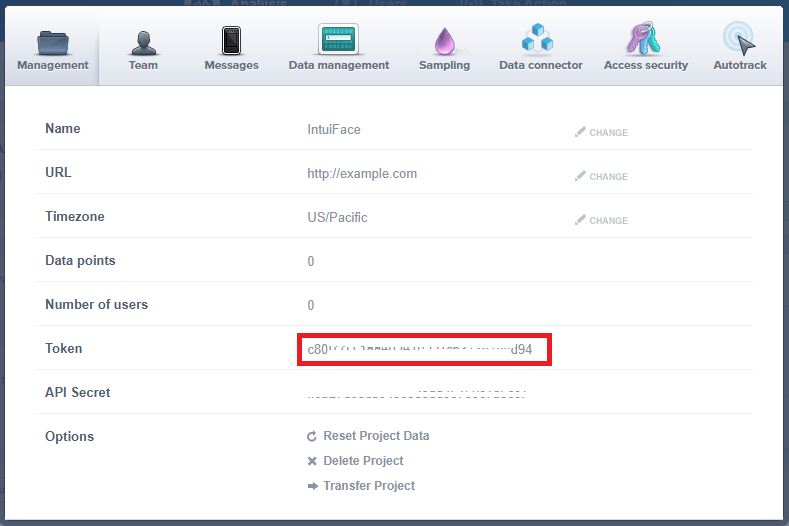

2. Click the "Project Settings" button in the top right of Mixpanel.


3. Copy the Token ID and paste it into Notepad (or some other tool used to save text).



Toggling Data Processing for a Mixpanel Project

Once a connector exists for a Mixpanel project, the connector can be toggled on and off using the slider labeled "Send data points to this connector".

• OFF: From the moment this slider is toggled to OFF, no new data points arriving at the Data Hub will be forwarded to this particular Mixpanel project.
• ON: From the moment this slider is toggled to ON, new data points arriving at the Data Hub will be forwarded to this particular Mixpanel project.

Structure of Data Forwarded to Mixpanel

The following fields appear in all forwarded data points:

• Time: Contains the timestamp at the moment the Log Event action occurred.
  The date is formatted as [day]/[month]/[year]. The time recorded is for the UTC standard, equivalent to Greenwich Mean Time (GMT).
  NOTE: Be sure to verify that the time and time zone are properly set on each device running Player.
• DeviceName: The name of the device running Composer/Player
• Application: The name of the Intuiface software running on the device. Values can be any one of
  • Composer
  • PlayerForWindows (used for Player on Windows devices)
  • Player (used for Player on all other platforms)

    • Legacy Analytics users: This field used to be represented by two values: PlayerForTablets and PlayerForKiosks.
  • Webpage (used for web and Progressive Web App deployments)
• ApplicationVersion: The version of the Intuiface application identified in the previous field.
• PlayerTags: A list of all tags assigned to this instance of Player. If multiple tags exist, they will be separated by the pipe symbol: '|'.
• OS: The name of the operating system on the device running Composer/Player. Values can be any one of:
  • Windows
  • iPad
  • Android
  • ChromeOS
  • SSSP [for Samsung SMART Signage Platform]
• OSVersion: The version of the operating system identified in the previous field.
• ExperienceName: The name of the Intuiface experience that generated this data point.
• Distinct_ID: Contains the Session ID if specified by the running experience. It could be blank.
• SceneName: The name of the scene in which the data point was generated.
• EventName: The name of the event specified in the Log Event action.
• ElapsedTime: Contains a value only for the automatically recorded events "Scene Left", "Session Stopped" and "Experience Stopped". In all other cases, this field will be blank.

The following fields only conditionally appear:

• Value: Only appears if using Intuiface Version 5.1 or earlier.
• Comment: Only appears if using Intuiface Version 5.1 or earlier.
• [Parameter Name]: Only appears if a parameter is associated with the event represented by this data point.
  • There will be as many columns as there are unique parameters across all data points downloaded to Mixpanel.

Translation of Parameter Values

The value of a parameter as recorded in Composer/Player may be represented differently in Mixpanel.

Below, the parameter value is on the left; the representation of that value in Mixpanel is on the right.

• Foo -> Foo
• "Foo" -> "Foo"
• 'Foo' -> 'Foo'
• 1234 -> 1234
• 12.34 -> 12.34
• 12,34 -> 1234
• 12,34,56 -> 123456
• 12,34,this -> 12,34,this
• 12,34, is my text -> 12,34, is my text
• "1234" -> "1234"
• True -> true
• False -> false
• 1234/12/12 -> 1234-12-12T00:00:00 (i.e year-month-dayTtime)
• 1234-12-12T12:34:56 -> 1234-12-12T12:34:56

Additional Notes

• If a Parameter value - the value of a parameter associated with the Log Event action - contains only numbers and one or more commas, the commas are deleted by Composer/Player before data point transfer. If the comma is meant to indicate decimal notation, use a binding converter to change the comma into a period.
