Description

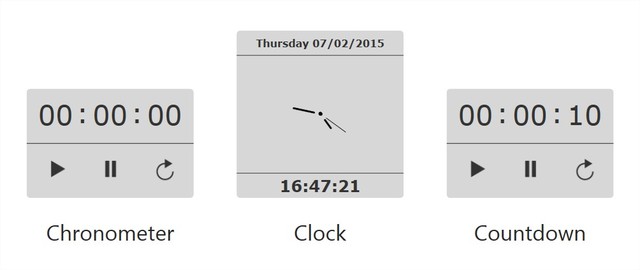

There are three Time Interface assets: Chronometer, Clock and Countdown
These 3 Interface Assets come with the following Design Accelerators
Chronometer
Properties
- Hours: Number of hours elapsed, ignoring the number of minutes and seconds
- Minutes: Number of minutes elapsed, ignoring the number of hours and seconds
- Seconds: Number of seconds elapsed, ignoring the number of hours and minutes
- Formatted seconds: Number of seconds elapsed, ignoring the number of hours and minutes. Always represented as a two-digit number - e.g. '01' instead of '1'.
- Formatted minutes: Number of minutes elapsed, ignoring the number of hours and seconds. Always represented as a two-digit number - e.g. '01' instead of '1'.
- Formatted hours: Number of hours elapsed, ignoring the number of minutes and seconds. Always represented as a two-digit number - e.g. '01' instead of '1'.
- Time: Current elapsed time, represented using the format 'hh:mm:ss'
- Duration in hours: Current elapsed time, represented only using hours. For example, 30 minutes would be represented as '0.5'. Fractional hours can have up to four decimal points.
- Duration in minutes: Current elapsed time, represented only using minutes. For example, 30 seconds would be represented as '0.5'. Fractional minutes can have up to four decimal points.
- Duration in seconds: Current elapsed time, represented only using seconds. For example, two minutes would be represented as '120'. There can be no fractional seconds
Triggers
- Chronometer is paused --> Raised when the chronometer is paused.
- Chronometer is started --> Raised when the chronometer is started.
- Hours are changed --> Raised when the number of hours has changed.
- Minutes are changed --> Raised when the number of minutes has changed.
- Seconds are changed --> Raised when the number of seconds has changed.
- Time changed
- Time is reached
Actions
- Pause -> Pause the chronometer
- Reset -> Reset the chronometer to 0
- Set time -> Set the chronometer to a specified time
- Start -> Start the chronometer
Clock
Properties
- Use AM/PM for display
- Time Zone
- Language
The properties below are read-only properties, thus only visible through a binding
- Hours -> ex: 03 for 03:00:00
- Minutes --> ex: 30 for 00:30:00
- Seconds --> ex: 45 for 00:00:45
- Use AM/PM for display --> ex: True/False
- Seconds in degrees --> ex: 270° for 00:00:45
- Minutes in degrees --> ex: 180° for 00:30:00
- Hours in degrees -> ex: 90° for 03:00:00
- Long Date --> ex: Tuesday, May 17, 2016 (depending on language setting)
- Short Date --> ex: 05/17/2016 (depending on language setting
- Long Time --> ex: 15:26:58 (depending on language setting
- Short Time --> ex: 15:26 (depending on language setting
- Complete date time --> ex: Monday, December 2, 2019 11:52 AM
- Day as string --> ex: Tuesday (depending on language setting)
- Month as string --> ex: May (depending on language setting)
- Year --> ex: 2016
- Day as Number --> ex: 17
- Month as Number --> ex: 05
- ISO 8601 date --> ex: 2016-05-17T15:26:58+00.00
- Time Zone --> ex: Local time
- Language --> ex: United States - English
Triggers
- Time is reached --> triggered when the specified time is reached
- Time changed --> triggered every moment the time value changes
- Year changed
- Date and/or time changed
- Date changed
- Day number changed
- Day string changed
- Hours angle changed
- Hours changed
- ISO 8601 date changed
- Minute changed
- Minutes angle changed
- Month number changed
- Month string changed
- Second changed
- Seconds angle changed
- Short date changed
- Short time changed
Actions
- Pause
- Resume
- Set Language
- Set Time Zone
- Set AM/PM for display
Countdown
Properties
- Seconds: Number of seconds remaining, ignoring the number of days, hours and minutes
- Minutes: Number of minutes remaining, ignoring the number of days, hours and seconds
- Hours: Number of hours remaining, ignoring the number of days, minutes and seconds
- Days: Number of days remaining, ignoring the number of hours, minutes and seconds
- Formatted seconds: Number of seconds remaining, ignoring the number of days, hours, and minutes. Always represented as a two-digit number - e.g. '01' instead of '1'.
- Formatted minutes: Number of minutes remaining, ignoring the number of days, hours, and seconds. Always represented as a two-digit number - e.g. '01' instead of '1'.
- Formatted hours: Number of hours remaining, ignoring the number of days, minutes, and seconds. Always represented as a two-digit number - e.g. '01' instead of '1'.
- Time
- Remaining duration in days: Remaining time, represented only using days. For example, 12 hours would be represented as '0.5'. Fractional days can have up to four decimal points.
- Remaining duration in hours: Remaining time, represented only using hours. For example, 30 minutes would be represented as '0.5'. Fractional hours can have up to four decimal points.
- Remaining duration in minutes: Remaining time, represented only using minutes. For example, 30 seconds would be represented as '0.5'. Fractional minutes can have up to four decimal points.
- Remaining duration in seconds: Remaining time, represented only using seconds. For example, two minutes would be represented as '120'. There can be no fractional seconds
Triggers
- Countdown paused --> triggered when the countdown is paused
- Countdown started --> triggered when the countdown is started
- Days changed --> triggered when days are changed
- Formatted hours changed - triggered when formatted hours are changed
- Formatted minutes are changed - triggered when formatted minutes are changed
- Formatted seconds are changed - triggered when formatted seconds are changed
- Hours changed --> triggered when hours are changed
- Minutes changed --> triggered when minutes are changed
- Seconds changed --> triggered when seconds are changed
- Time is reached --> triggered when the specified time is reached
- Time changed --> triggered every moment the time value changes * ****
Actions
- Start
- Pause
- Reset
- Set Days
- Set Hours
- Set Minutes
- Set Seconds
Limitations
- Clock: If the Clock language is different from the language set on the device, upon playing the experience in composer play mode, the language of the machine will be briefly shown before the Clock's selected language will be applied.
