Overview

This article explains how to install and run Intuiface Player on a BrightSign device. Once Player is running, the user experience is similar to that of all other supported platforms. If you are already familiar with how to use Player on those platforms, you can go from a published Intuiface experience to running it on BrightSign in seconds. If you are new to Intuiface, hang in there - it's easy!

Intuiface Prerequisites

You should be familiar with Intuiface's BrightSign limitations and overall Player limitations. The lists are short, but knowing them will ensure your experiences run successfully.

Supported Hardware

Player was tested on the following models:

• Series 5

  • Up to 8k resolution
    • Model XC5: XC2055 and XC4055
  • Up to 4k resolution
    • Model XT5: XT245, XT1145, and XT2145
      • Model XT245 does not have a USB port and thus will not recognize touches on a touchscreen
  • Up to Full HD (1080p) resolution
    • Model XD5: XD235 and XD1035
      • Model XD235 does not have a USB port and thus will not recognize touches on a touchscreen
    • Model HD5: HD225 and HD1025
      • Model HD225 does not have a USB port and thus will not recognize touches on a touchscreen
• Series 4
  • Model XT4: XT244, XT1144, and XT1144-T
    • Model XT244 does not have a USB port and thus will not recognize touches on a touchscreen
  • Model XD4:  XD234 and XD1034
    • Model XD234 does not have a USB port and thus will not recognize touches on a touchscreen

NOTE:

• The more powerful the device, the more complex an Intuiface experience can be. For example, not all experiences will perform well in XT5 on 4k displays or in HD5 on Full HD displays. No complexity measure exists, so do not assume a particular device will perform adequately for a given Intuiface experience. Be sure to test your experiences before committing to a specific Brightsign model.
• BrightSign no longer sells all Series 3 models and some Series 4 models.
• Model XC5 can support a multiscreen setup for up to four screens, and Model XT5 can support a multiscreen setup for up to two screens. For both models, only one of the screens can receive touch input. This is a current BrightSign limitation that may change in the future.

Supported OS version

Player requires BrightSignOS Version 8.5 or higher, independent of the device model.

We recommend installing the latest BrightSign OS (firmware) available for download. You can download the appropriate firmware for your device from the page below:

• https://www.brightsign.biz/resources/software-downloads/

Installing Intuiface Player on a BrightSign device

Installation using BSN.cloud Control Cloud

Prerequisites

Installation of Intuiface Player using Control Cloud assumes:

• You have a BSN.cloud Control Cloud (or greater) account
  • To create a Control Cloud account, visit https://control.bsn.cloud, click the "New User" button, and complete the form.
  • When creating a Control Cloud account, you must specify a "network". Each network is a logical grouping of one or more BrightSign players. All of your BrightSign devices running Intuiface Player could be in the same network, or you could separate them across multiple networks - that's up to you.
• You are logged into your BSN.cloud account
  • You can use the Control Cloud website or, if you installed it during previous BrightSign use, the BrightAuthor:connected application.
• You have installed the appropriate version of the BrightSign OS (aka the firmware) on all your BrightSign devices.

  • Follow these firmware installation directions for each BrightSign device.
• You have an Intuiface account (required for licensing and launching Intuiface Player);

For brand-new, never-used BrightSign players, we recommend that you wait to boot them until after following the process described in the next section. This will simplify the Intuiface Player setup process. The firmware update process identified above does not result in a device boot, so it can be done anytime.

Using Control Cloud

The following assumes you have logged into your BSN.Cloud account using the Control Cloud website or - if you installed it during previous BrightSign use - the BrightAuthor:connected application. The following screenshots are from the Control Cloud website.

1. Select the Admin tab, then select Player Setup


2.  Create the following setup package:
   • Specify a "Setup Name". You can type whatever you want. In the screenshot below, we use "IntuifacePlayer" as an example for the package name.
   • Leave the "Player Name" and "Player Description" fields blank
   • In the "Publishing Mode" section, select "Partner Application" then add "Intuiface" in the dropdown list.
   • Click on "Add Setup to library"



3. Register each of your BrightSign devices with your BSN.cloud account

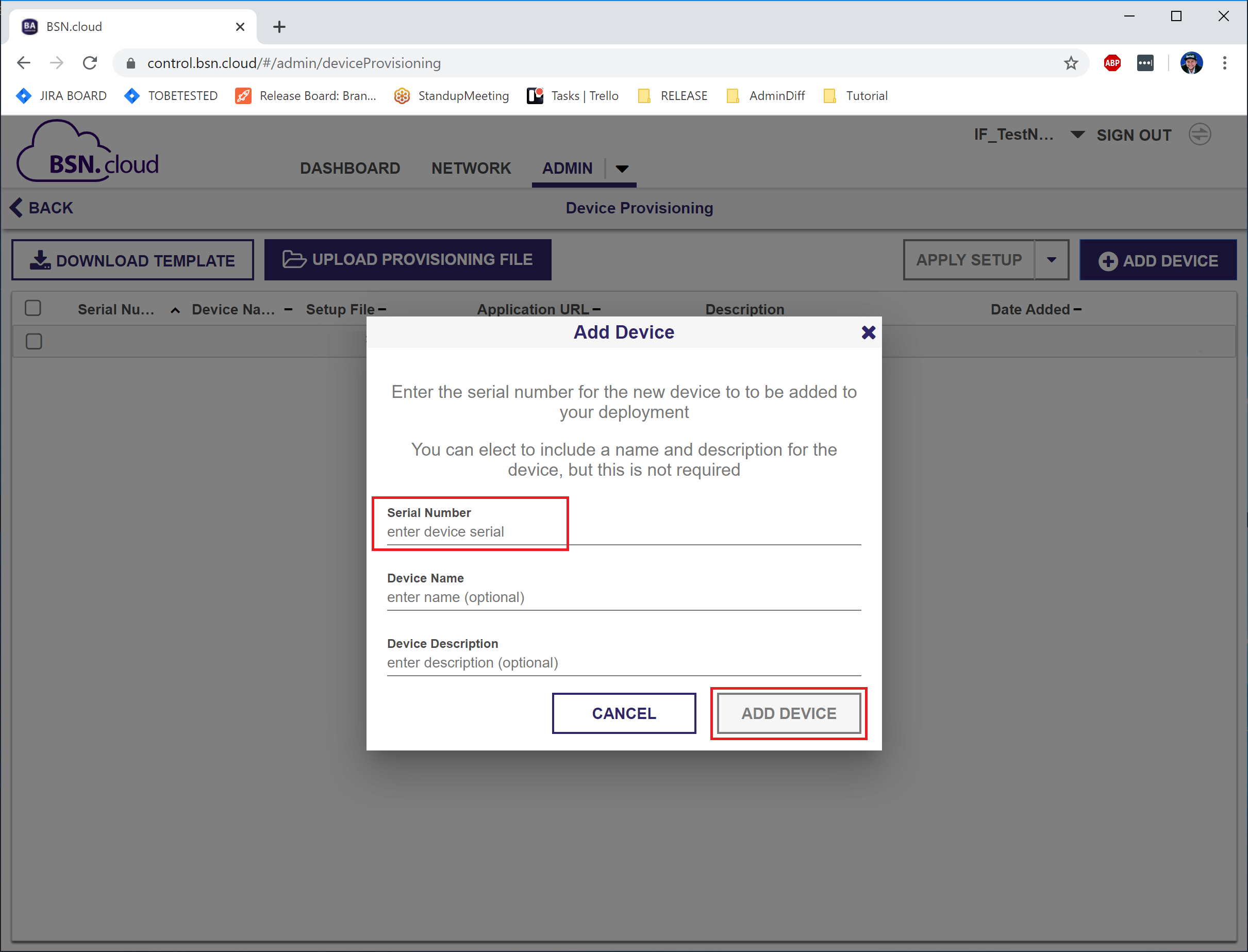

   • Go to Admin > Device Provisioning > Add Device
   • Enter your device's serial number (mandatory) and other information (optional).
   • Click on Add Device

4. Once the device is added, you must apply the setup package created in Step 2 above.
   • Select one or more BrightSign players in the list you've created and click on the Apply Setup button located above and to the right of that list.
   • In the "Apply Setup" pop-up window, choose the package you created in Step 2 above from the "Setup" dropdown list (in this example: "IntuifacePlayer")
   • Click the Apply Setup button.



5. For brand new, never booted BrightSign players.
   Insert a blank SD card into each BrightSign unit. The device will now start downloading and installing Intuiface Player. Once installed, log into Player. Skip Steps 6 and 7 below.

   For previously used (and thus provisioned) BrightSign players
   You need to use the Reprovision Device option. This process will wipe out all previously installed content on the BrightSIgn player's SD card. Repeat Steps 6 and 7 below for each of your BrightSplayers individually.

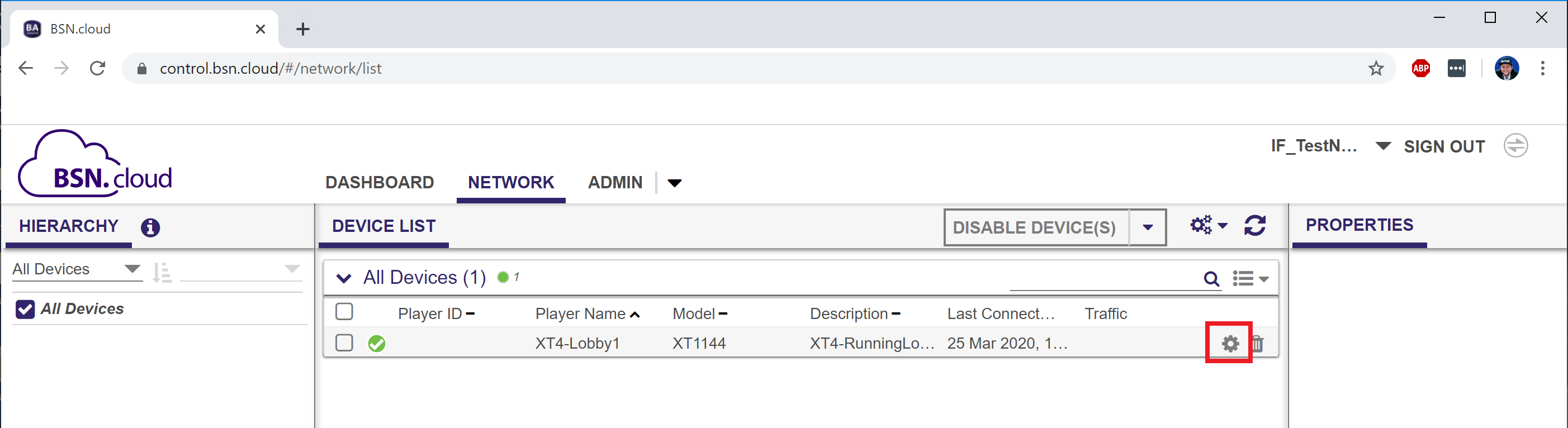

6. Go to the Network tab, then click the gear button for one of your BrightSign devices.

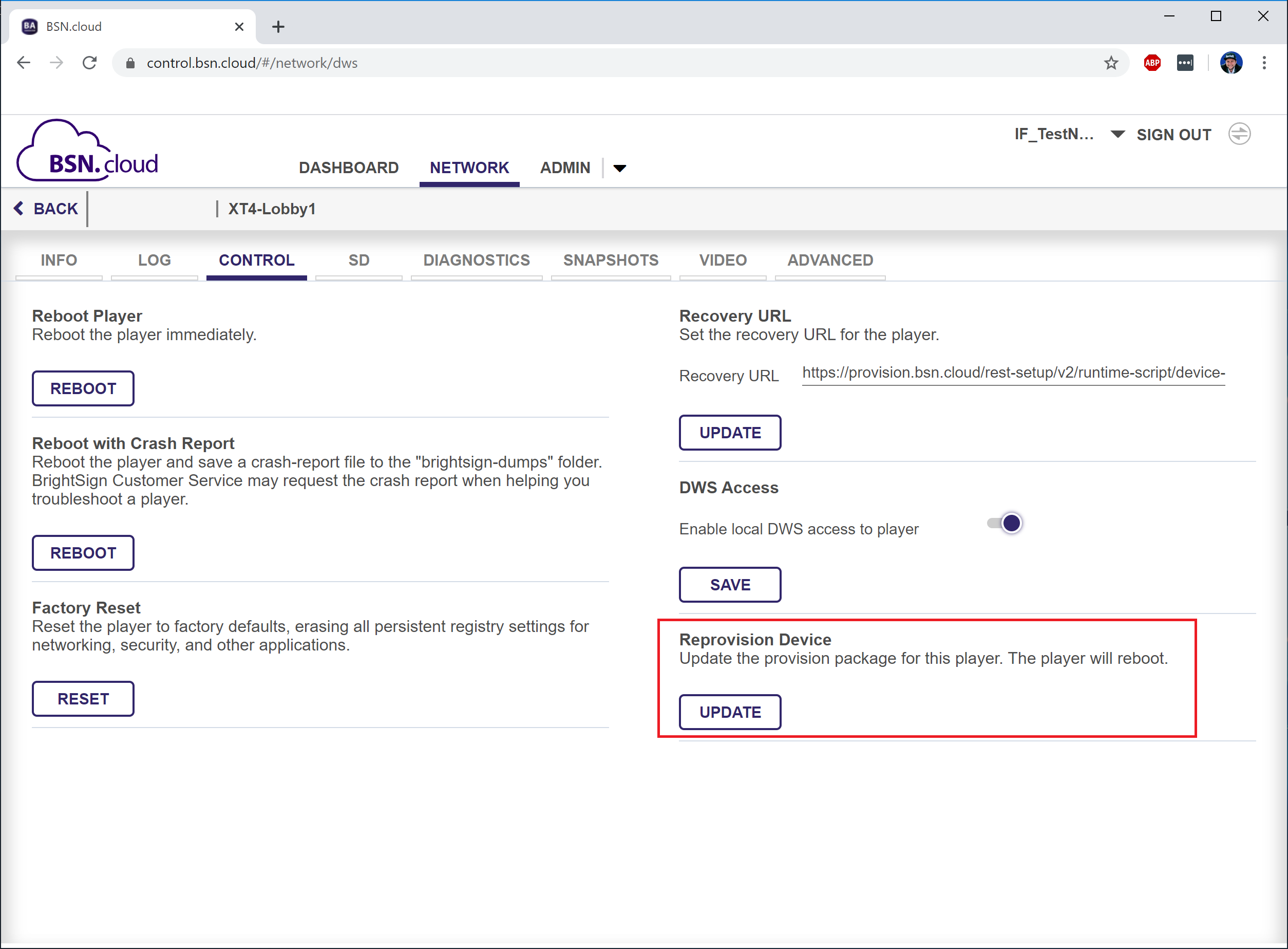

7. Select the Control tab, then press the Update button in the Reprovision Device section.
   NOTE: This action will irreversibly delete all content from your device's storage and then start the installation of Intuiface Player. The device will reboot several times during the installation phase. Don't disconnect or reboot your device until you have completed the setup.



Manual Installation using the BrightSign SD card

This installation approach assumes you have direct physical access to the BrightSign device.

1. On a Windows PC, visit https://player.intuiface.com/brightsign to download the file autorun.zip.
2. Unzip this file. The output is one folder and two files

3. Copy the folder and two files to the root of the BrightSign SD card.
4. Slide the SD card into the BrightSign device and then boot the device. Intuiface Player will run.

NOTE: Although manual installation does not require an internet connection, Player license activation - see the next section - does require a live connection.

Player activation (aka assigning a license)

Assigning a license

Player activation is the process of associating a Player with an Intuiface account and—if available—a paid license. The activation mechanism has been designed for very large-scale and highly variable deployments.

Choose from any of the multiple Player activation options that are available.

NOTE:

• When a license expires, it is released automatically. Player will then request a new license the next time it is run.
• If no active Platform plan/license is available, Player will not run.

License checkout order

If Intuiface is to automatically assign a license, such as when logging into Player, the oldest available license (based on the original purchase date) with the longest subscription duration will be selected.
